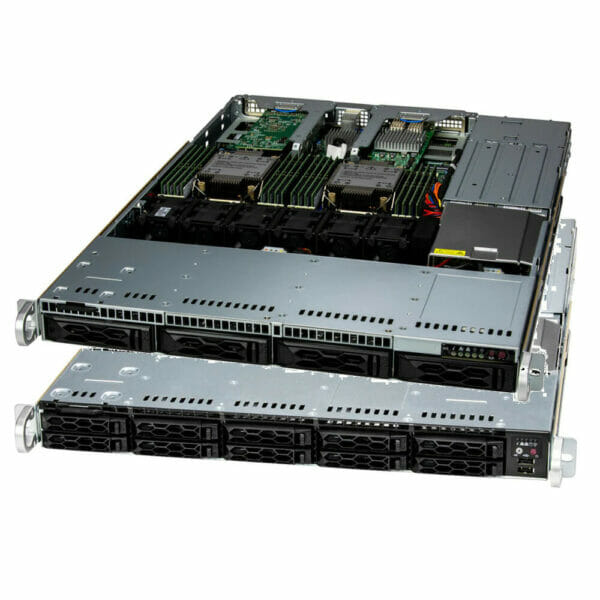

Supermicro SYS-611C-TN4R or SYS-121C-TN10R

Key Applications: Web Server, Firewall ApplicationData Center Optimized, Value IaaSCloud Computing, Compact ServerDNS & Gateway Servers, Firewall ApplicationCDN, Edge Nodes

Key features:

  • Dual socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
  • 16x DIMMs up to 4TB 3DS ECC DDR5-4800: RDIMM
  • 2x PCIe 5.0 x16 FHHL
  • 2x PCIe 5.0 x4 NVMe M.2
  • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
  • Configurable hot-swap hybrid NVMe/SATA/SAS drive bays
    • Supermicro SYS-611C-TN4R = 4x 3.5″ bays

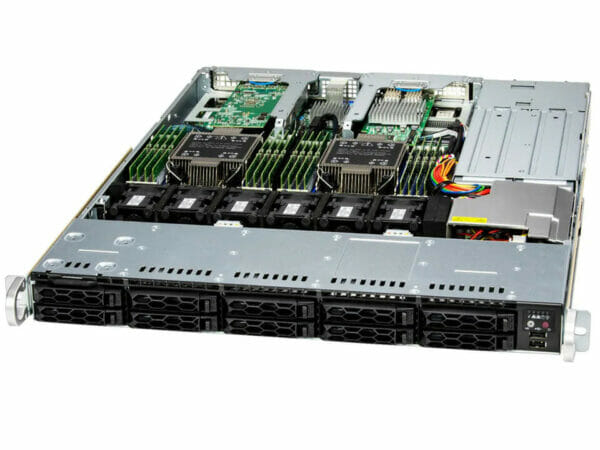

    • Supermicro SYS-121C-TN10R = 10x 2.5″ bays
  • 6x counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies

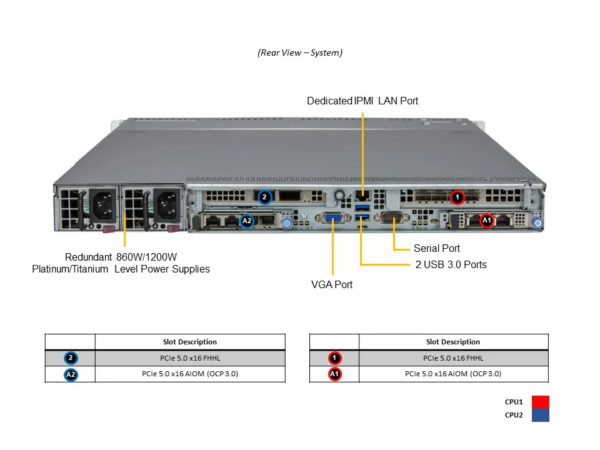

  • 1x VGA, 1x COM, 2x USB 3.0 (rear), 2x USB 2.0 (front)

Datasheets: [4-bay 3.5″] [10-bay 2.5″]

Pricing available upon request
