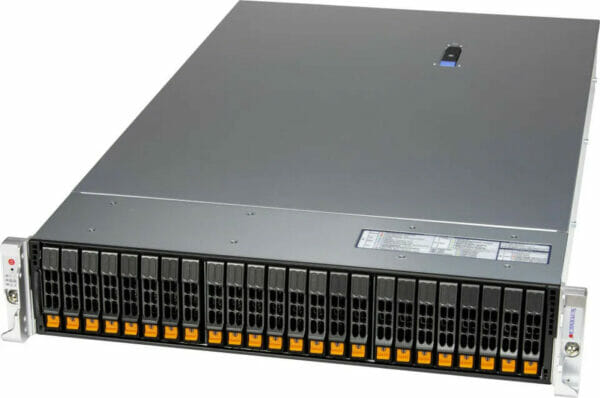

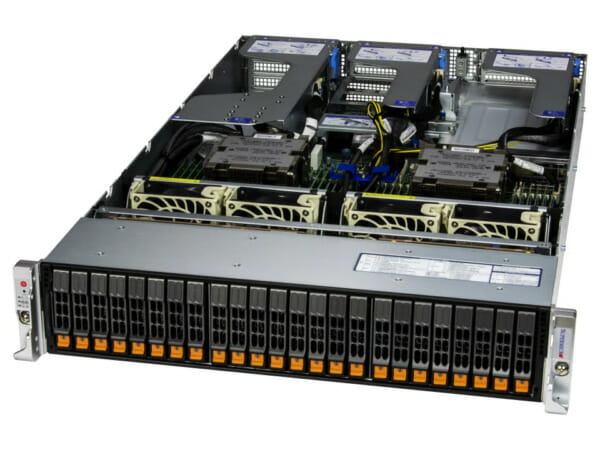

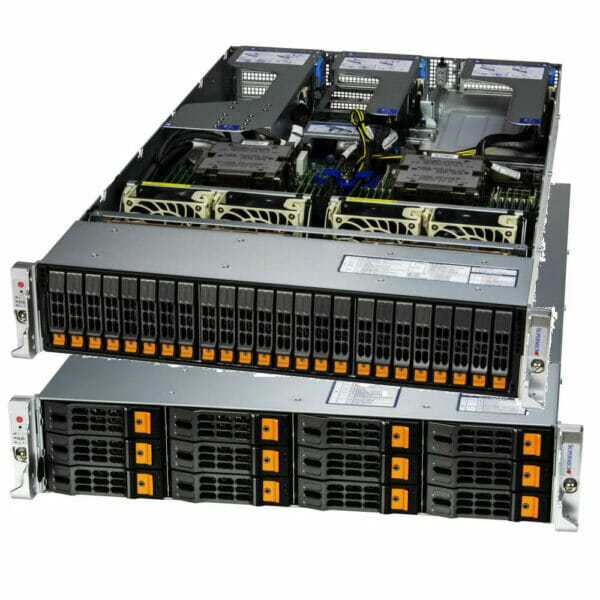

Supermicro AS-2015HS-TNR, AS-2025HS-TNR, AS-2115HS-TNR, AS-2125HS-TNR

Key Applications: Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server

Key features:

• 4th Generation AMD EPYC™ 9004 Series Processor
• ASPEED AST2600
• Single-socket: 12x DDR5-4800MHz DIMM slots (1DPC) up to 3TB
• Dual-socket: 24x DDR5-4000/3600MHz (2DPC) up to 6TB
• 12x 3.5” or 24x 2.5″ Hot-swap NVMe/SAS/SATA Bay configurations

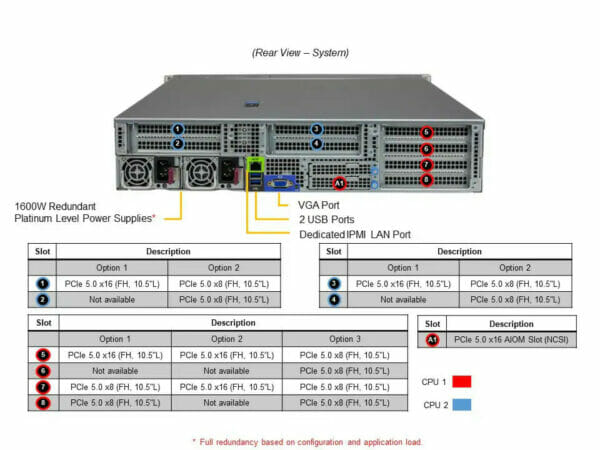

• 1x AIOM/OCP NIC 3.0 Slot
• Configuration Options for up to
  • 4x PCIe 5.0 x16 Slots OR 8 PCIe 5.0 x8 Slots or
  • 3x PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or
  • 2x PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or
  • 1x PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
• 2x On-board PCIe Gen4 M.2 NVMe 80mm/110mm (Boot Drive) slots
• 800/1200W and 1000/1600W Redundant 80+ Titanium Power Supply options

Datasheets: [UP 12-bay] [DP 12-bay] [UP 24-bay] [DP 24-bay]
