Equus R1770 R1970
Equus R1770 R1970

Equus R1770

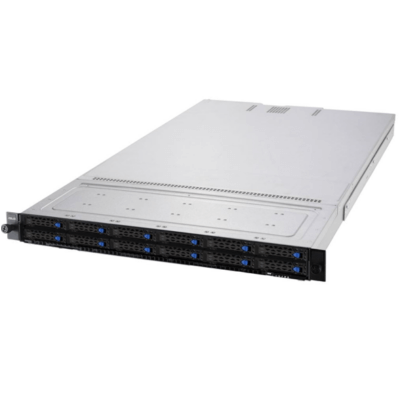

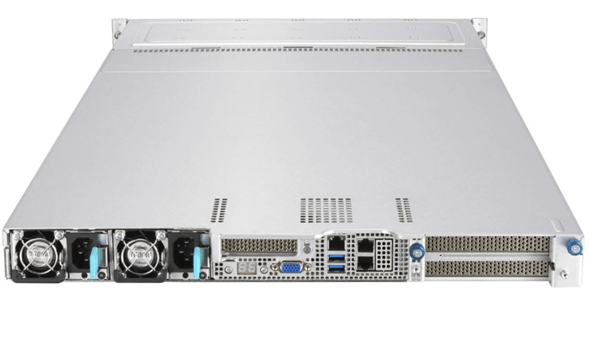

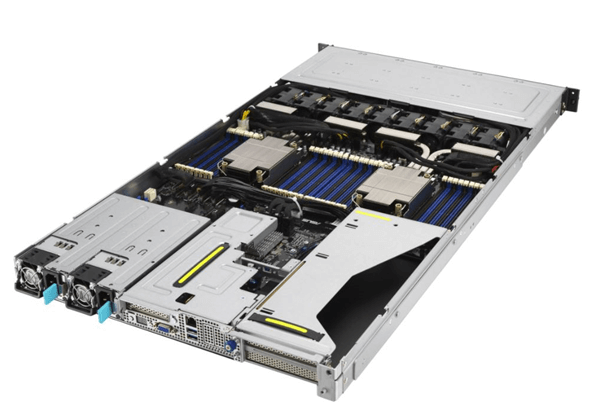

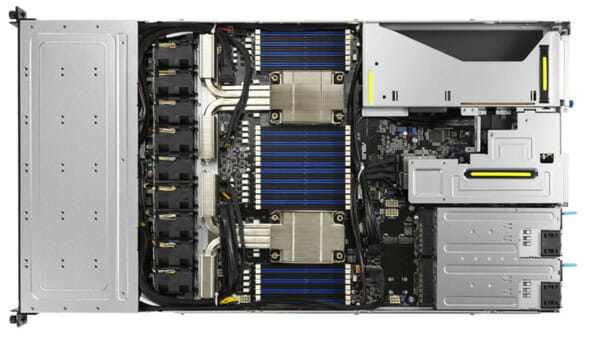

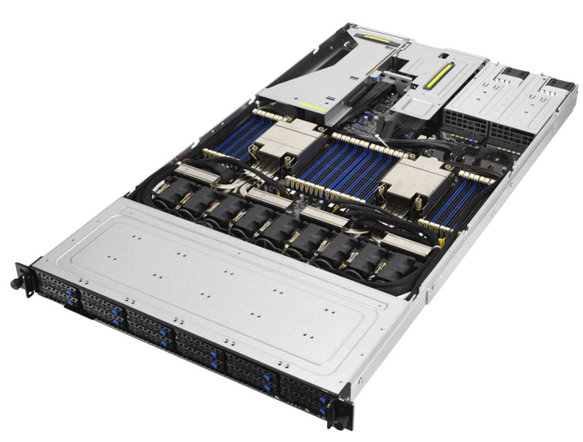

This 1U 12-bay dual Intel 3rd Gen Xeon Scalable server platform features:

  • Dual Intel 3rd Gen Xeon Scalable processor support (LGA-4189 socket) up to 270W TDP
  • 12x 2.5″ hot-swap SATA/SAS*/NVMe drive bays
  • 32x DDR4 ECC DIMM Memory Slots
  • Onboard 2x PCIE 4th Gen NVMe M.2 slots
  • Dual 10GbE RJ45 (Intel X710) network ports + a 1GbE RJ45 iKVM port
  • Onboard graphics (VGA port)
  • Onboard USB 3.2 Gen1 (2x Rear)
  • Expansion slots: 2x PCIe4.0x16 FHFL + 1x PCIe4.0x16* LP
  • Power Supply: 1+1 Redundant 1600W 80 Plus Platinum Power Supplies

[Datasheet]

Configured Price:

$5,075.00

Base Configuration includes:
Processors: Dual Intel Xeon Silver 4309Y (2.8GHz 8C/16T 12MB 105W)
Memory: 64GB SDRAM (8X 8GB DDR4-3200 ECC RDIMMs)
OS Drive: 1x 960GB M.2 NVMe 1DWPD (Micron 7450 Pro)
Security: TPM 2.0 Module (Asus TPM-SPI R2.0)
Operating System: --- NOT INCLUDED ---
Warranty: Equus Standard US Depot (3-year)

  • Processor Upgrades *

  • Memory Upgrade Options *

  • OS Drive Options *

  • Storage Options *

  • Networking Add-on Options *

  • Operating System Options *

  • Operating System Options *

  • Operating System Options *

  • Warranty Option *

Product total

Options total

Grand total
